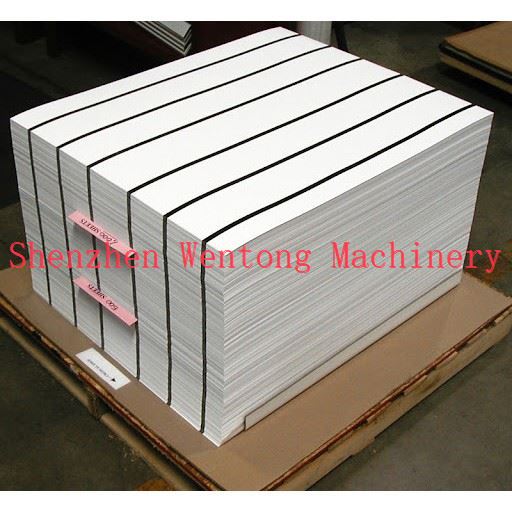

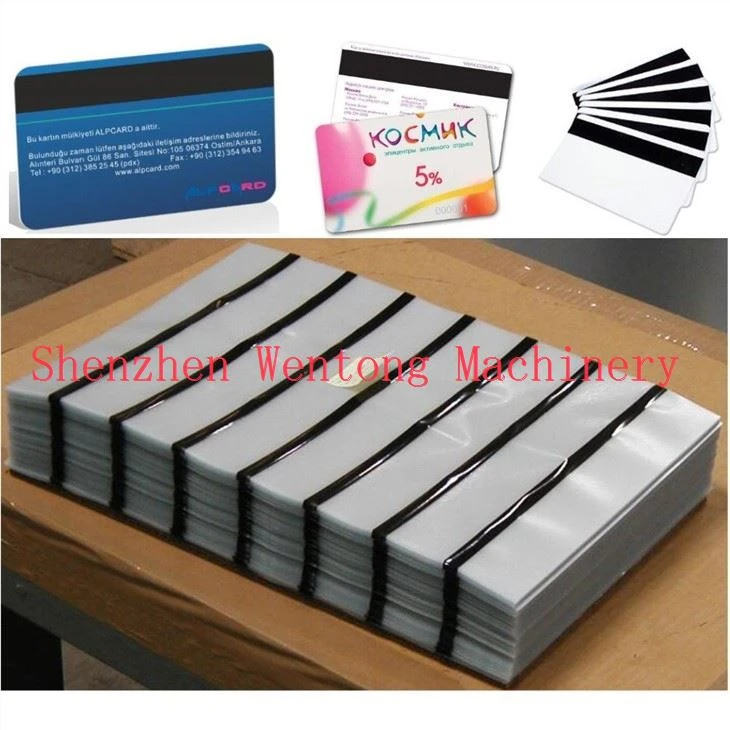

This automatic magnetic tape laying machine is typically designed for laying magnetic strips onto film or card sheet materials.
1．Servo motor driven roller conveys sheets, offering precise sheet feeding and adjustable feeding speed;
2．Independent temperature control and PLC control;
3．Multi laying rollers with adjustable pressure ensure optimal laying result;
4．Pressure and temperature of each laying roller are individually controlled;
|
Power supply |
AC 380V/50 HZ |
Format |
3X8/4X8/5X5 optional |
|
Total power |
2.5KW |
Control |
PLC control + servo system |
|
Air source |
6 kg/cm2 |
Operators needed |
1 |
|
Air consumption |
Approx. 80L/min |
Dimension |
L2250*W1000*H1700MM |
|
Laying accuracy |
±0.15mm |
Product thickness |
0.2mm~0.8mm |
|
Temperature control accuracy |
±2℃ |
Temperature control range |
0~400℃ |
|
Magnetic tape width |
6.35mm/8.4mm/12.7mm |
Quantity of magnetic tapes |
5~8 |
|
Applicable materials |
Paper card, PVC, ABS, PET, PVC/ABS composite materials, etc. |
Productivity |
1100 Sheet/H |
