Product introduction

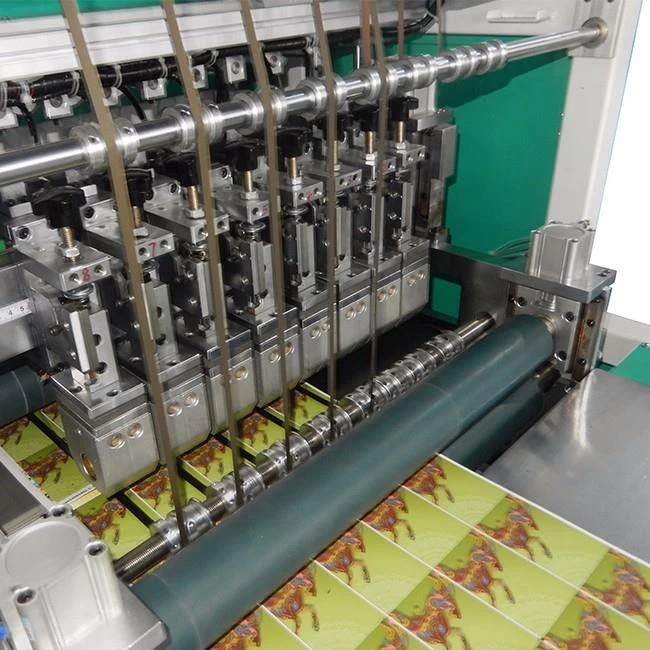

The automatic magnetic stripe machine stably welds the magnetic strip to PET, PVC or paper cards. After welding, the magnetic strip can be cut to a specified length while welding and cutting are completed. The entire process runs automatically and reliably.
Quick details
Condition: New
Color: Custom made
Automatic Grade: Automatic
Power Source: Servo motor system
Place of Origin: Shenzhen, China (Mainland)
Voltage: 380V/220V
Power(KW): 6.5KW
Weight: 800kg
Dimension(L*W*H): 2100x1000x1750(mm)
Productivity: About 800 Sheet/H
After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Product highlights
A: By driving the servo motor for automatic feeding, you can control the running speed and feed speed and length.
B: Heating temperature control mode: heating tube heating, imported temperature probe with temperature control module to control temperature, simple setting, accurate temperature control
C: The temperature and pressure of each magnetic laying head can be adjusted solely
Technical Parameters
Total Power: 6.5KW
Power Supply：AC380V/50HZ
Air source: 6 kg/㎝²
Applicable Materials: Paper card，Mixed material
Available sheet: According to customer's needs
Stripe amount: 5-8 PCS
Temperature control range: 0-400℃
Number of operators: One person
Control Mode：PLC program
Productions details
Packaging and shipping
Packaging details: Standard wooden case
Booking port: Shenzhen
Lead time: Shipped within 45 days after payment
Service items1
Pre-sale Service :
A: Provide round-the-clock consulting services
B: Product testing
C: Invoice and Contract confirmation
After-sale Service :
A: English manual and video instruction
B: Training and commissioning
C: Engineers available for overseas if necessary
FAQ
1.Q: What information should I provide if I want to customize a machine?
A: You have to provide the following information
1.Material specification
2.Card thickness
3.The width of the magnetic strip
4.Machine color, structure, productivity, etc.
2.Q: Can you produce according to our design?
A: Yes, we can not only design technical solutions ourselves but also make them through your technical drawings.
